Semiconductor Components — Heaters, Electrostatic Chucks, and Crucibles

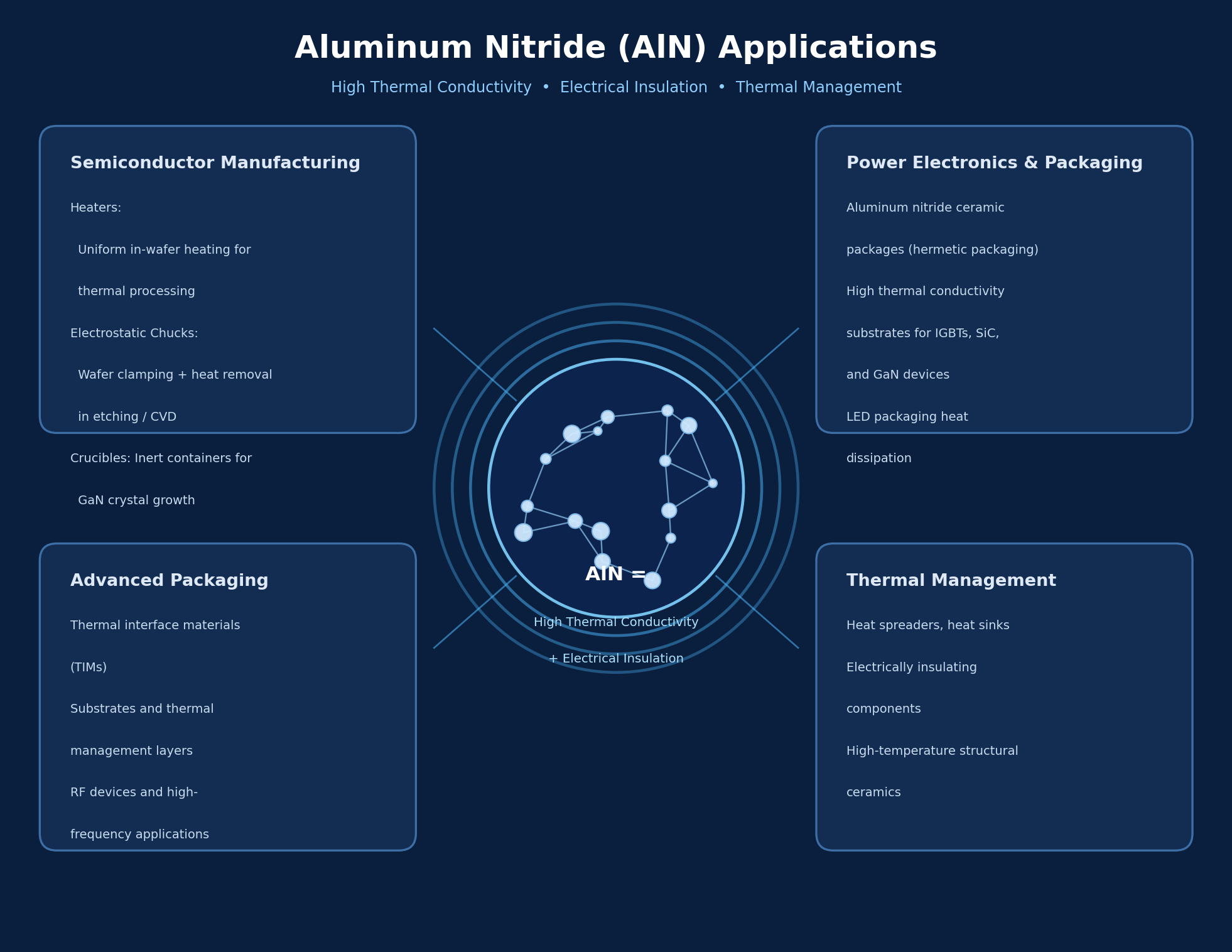

In advanced semiconductor manufacturing, AlN is not only used as a substrate — it also serves as a "heat-conducting component." These three typical component types have very different requirements, but their technical roots all lie in the powder.

Aluminum nitride heater for semiconductor manufacturing: Uniform in-plane temperature control of the wafer depends on tuning the volume resistivity through semiconductive doping. Pure AlN is an insulator, so it must be doped with rare-earth/transition metals or combined with conductive phases (such as MoSi₂, TiB₂) to generate heat — with uniform in-plane resistivity. Too conductive, and local overheating occurs; too insulating, and no heat is generated at all.

AlN ceramic electrostatic chuck: It must not only clamp the wafer through electrostatic force generated by the dielectric layer (Coulomb-type or Johnsen-Rahbek type), but also rapidly remove heat from etching/CVD processes. The thermal conductivity of AlN (approximately 170–200 W/m·K in engineered parts) is far higher than that of alumina (20–30 W/m·K) — this is the core reason it replaces conventional alumina chucks. Temperature uniformity directly affects line width and yield.

Custom aluminum nitride crucible: It serves as an inert container in GaN and other crystal growth processes, offering excellent chemical stability and thermal shock resistance, with low contamination toward most semiconductor melts and high temperature tolerance.

The common thread: the technical root of all these components lies in the powder. When oxygen content rises, O atoms substitute on N sites, and aluminum vacancies generated for charge compensation increase, scattering phonons and degrading thermal conductivity. This is why high purity aluminum nitride powder typically requires low oxygen content, a narrow particle size distribution, and batch-to-batch consistency — it determines the distance between "producing a sample" and "qualifying for a semiconductor production line."

And the level of powder performance directly determines whether a component can pass production line qualification: with the same formulation, any fluctuation in oxygen content, particle size distribution, or batch stability will show up in the thermal conductivity and resistivity of the sintered part. The bottleneck for components is often not in sintering, but in the quality of the powder itself.

Beyond components, aluminum nitride ceramic packages (hermetic packaging with high thermal conductivity), aluminum nitride ceramic substrate (heat-dissipating substrates for power modules/LEDs), and aluminum nitride advanced packaging materials (thermal interface and substrate materials for advanced packaging) are extended applications of AlN on the same technological foundation — powder specifications likewise set their ceiling.
